KWIK EQUIP

Cena brez DDV

Vprašaj za ceno

Compnay LOGO
Images6

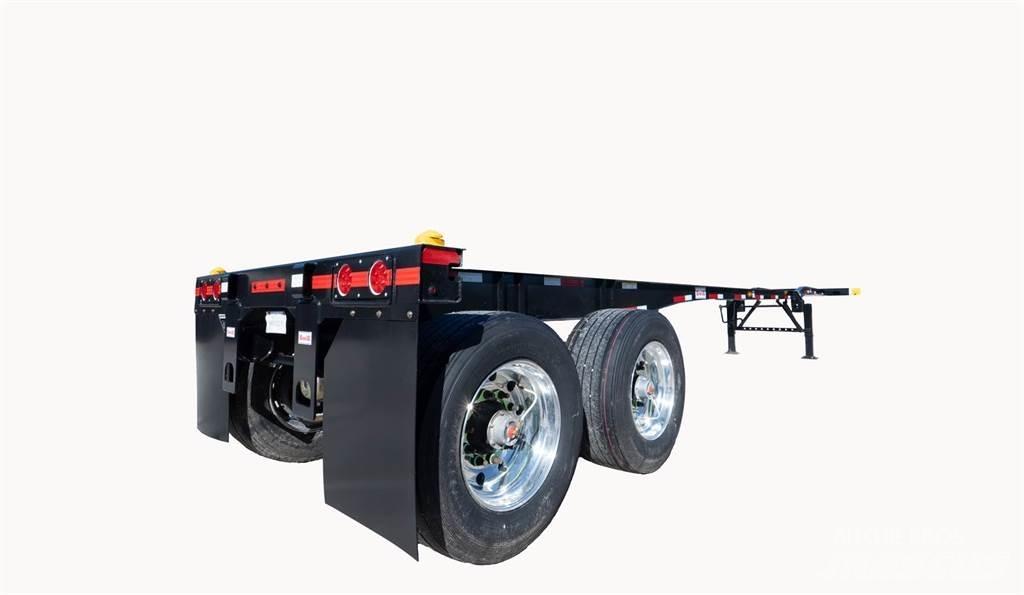

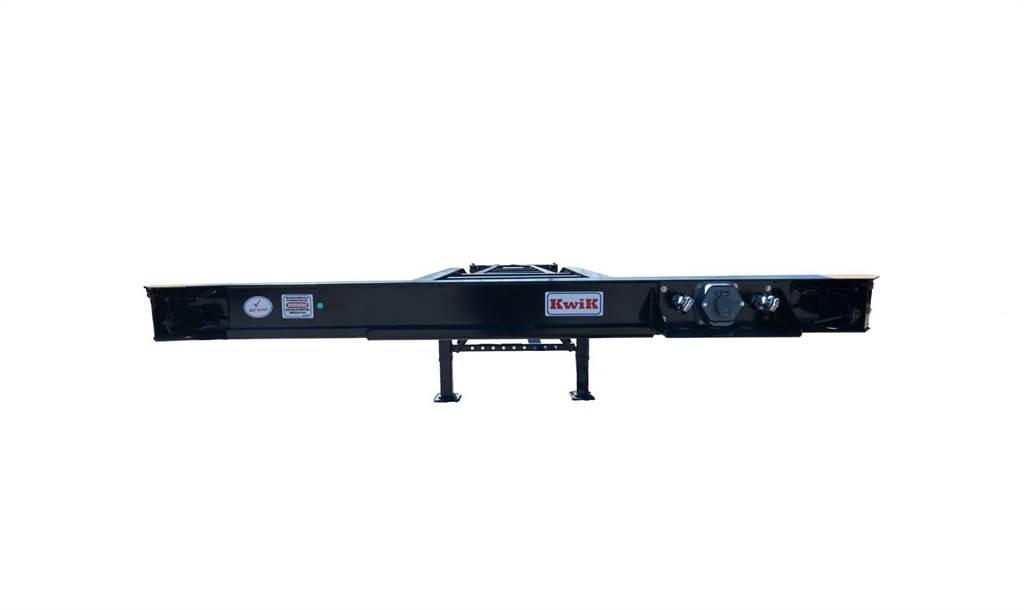

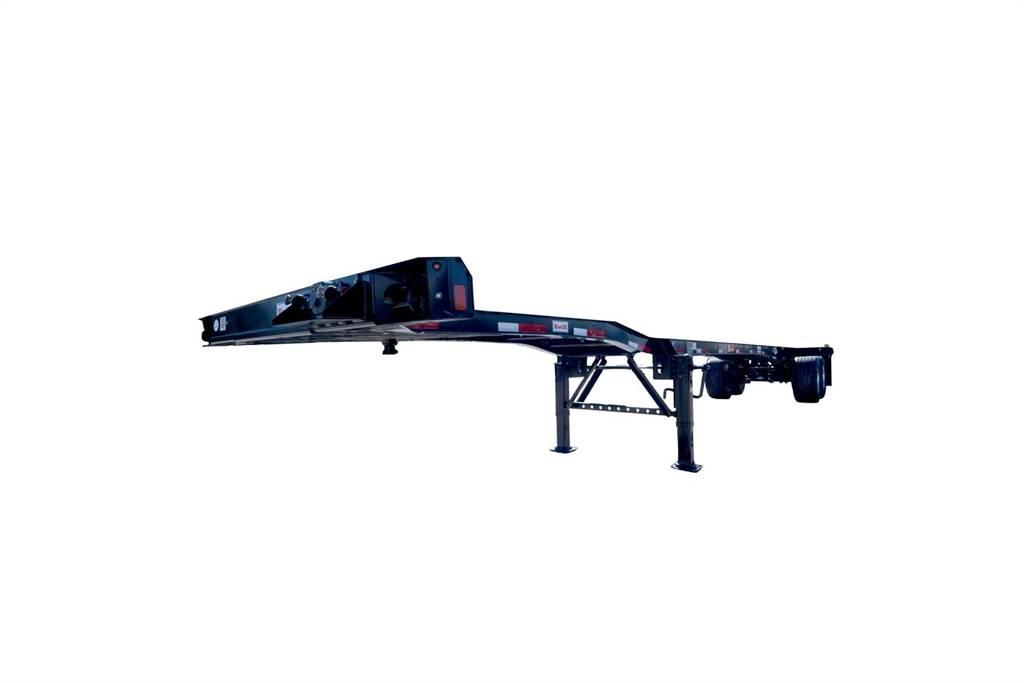

KWIK EQUIP Razstavljive prikolice
KWIK EQUIP Razstavljive prikolice
KWIK EQUIP Razstavljive prikolice
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Razstavljive prikolice
Znamka /model
KWIK EQUIP
Leto izdelave
2024
Kraj stroja
Houston, Texas
Država
ZDA
Mascus ID
913FC2F9

PODROBNOSTI

Inventarna št.
194024ULK
Drugi podatki
41ft long Lightweight Tandem axle spring suspension chassis with hub-piloted Aluminum Super Single disc wheels and Super Single radial tires PURPOSE: Designed to carry high cube 40ft container, up to 64,000 lb (conditions apply) CONTAINERS: (1) 40ft HC Container STANDARD DIMENSIONS: LENGTH: 41’ WIDTH: 96” FIFTHWHEEL HEIGHT: 47’ KINGPIN SETTING: 26” AXLE SPREAD: 49” REAR DECK HEIGHT: 48” TARE WEIGHT: 4,400 LB (+/- 3%) (Chassis only) FRAME RATING: 65,500 LB GVWR: 65,000 LB (Chassis, Container & Net Payload) GCWR w/o Permit: 80,000 LB (Chassis, Container, Net Payload & Tractor) GCWR w/ Permit: 84,000 LB (Chassis, Container, Net Payload & Tractor) STANDARD SPECIFICATIONS / FEATURES: MAIN BEAMS: Fabricated beams, Flanges and webs are of high-grade strength steel CROSSMEMBERS: Fabricated / formed KING PIN: 1/4” plate with 2” diameter king pin. TWISTLOCKS: Standard front Pin locks and rear Non-retractable twistlocks LANDING GEAR: 2-speed 14” travel with cushion foot SUSPENSION: 49” Spread Tandem Axle Overslung with Fabricated Undermount Hangers AXLES: 71 ½” Track, 5” Round, 22,500 lbs capacity, with 49” centers HUBS & DRUMS: Light weight hubs and drums – 10-hole Hub Piloted BRAKES: 16 ½” X 7” quick-change brakes with non-asbestos lining WHEELS: (4) 8.25 X 22.5 10-hole SUPER SINGLE ALUMINUM DISC Wheels TIRES: (4) 445/50R22.5 Super Single tires BRAKE SYSTEM: Standard Valve System for service and emergency brakes. 2S/1M ABS system ELECTRICAL SYSTEM: 12v w/modular wiring and plug type connectors. 7-way pin electrical plug for ABS System. Sealed wiring harnesses. LED Lights with flange mounts PAINT: Zinc rich primer with Topcoat Urethane finish COLOR: BLACK (Standard) MISCELLANEOUS: 24x30 KWIK Mudflaps, logos, decals, Conspicuity Striping, Trucklite Registration Holder, etc., ADDNL FEATURES:  Metal Dock Bumpers  PSI Tire Pressure System  Loose Lug nut indicatorsNaprej

Darda Management Group LLC

825 S Loop West Ste A-1 77054 Houston Texas ZDA
